Alarm Management for more Plant Security and Transparency
Features - Overview
Alarm frequencies and shift events under control
Display of the system status
Notification via e-mail
Generation of KPI reports
Task management and release
Central administration of user and group access rights
Interface to PLC/PCS
Alarm comparison, determination and documentation of the reasons
Plant Historian AM
Alarm Management according to ISA 18.2, NAMUR NA102 and EEMUA 191 - for more Plant Safety, Security and Tranparency
Plant Historian AM is a long-term archiving system for alarms and messages which facilitates and accelerates decision-making in critical situations, thus contributing to plant safety and security by:
- Linked procedural instructions (for the creation of procedural instructions, we offer support with our documentation software PLSDOC
- Transparency in case of alarm flooding, e.g. due to alarm lists according to priorities
- Direct information forwarding or alarm notification per SMS, e-mail, phone or to the digital shift book
Production downtimes, plant shutdowns or even accidents with fatal consequences for people, machines or the environment can be avoided.
More advantages for production:
- Reduction of occurring alarms
- Load relief for the operators
- Reduced time effort spent on error message recording, reporting and research
- Increase in process quality
- Optimizing machine utilization (OEE)
- Basis for alarm rationalization and MoC (Management of Change)
Plant safety – transparency – central availability
- Increased plant security due to a transparent presentation of alarms & events of the process control system
- Increased plant availability (OEE)
- Shorter response times as a result of alarm & event forwading via SMS, email or phone
- Support for alarm reduction and reduced workload for the staff
- Automatic KPI reporting according to ISA 18.2, NAMUR NA102 and EEMUA 191 (follow-up and chattering alarms, average alarm rate per operator, alarm duration, evaluation of alarm frequency)
- Central alarm & event (A&E) monitoringwith linked procedural instructions

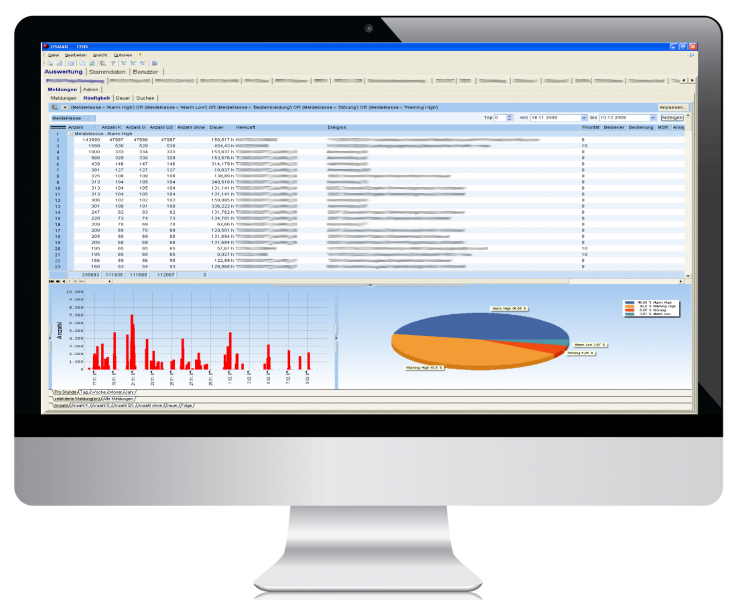

- Graphic A&E frequency analysis and distribution (e.g. top 20 evaluation)

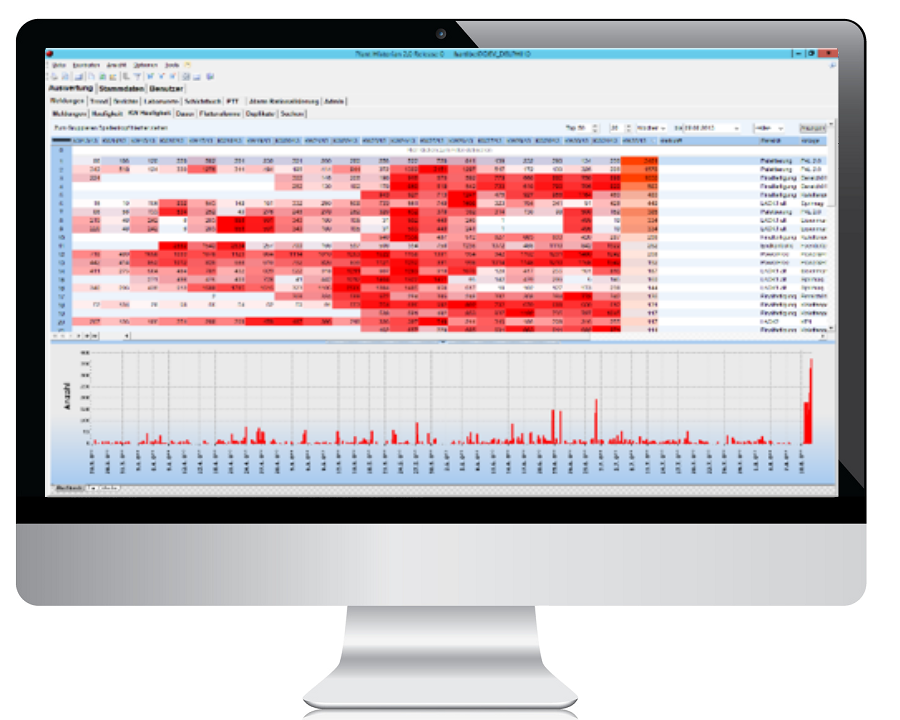

- Evaluation of alarm frequency per calendar weeks (detection of alarm tendencies)
- Duplicate detection: indication of alarms that occur several times within +/- 1 second
- Analysis of follow-up and chattering alarms
- User-specific analysis and filter settings for alarm & events
- Automatic forwarding of alarms & events to digital input masks, e.g. automatic fault detection, shift book entries, SAP etc.
- Company-wide, central solution, no client installation necessary
- Multiuser and multi-project capabilities, scalability, multilingualism and independence from the process control system
- Standardized interfaces to the PCS / SPS world
- OPC connection to any process control system / control, e.g.:
- Siemens: Simatic PCS7, S7, WinCC, Teleperm M
- Yokogawa CENTUM VP
- Emerson: Delta V
- Honeywell: Experion, FSC102
- ABB: Freelance, 800xA, Advant Master, Symphony Maestro UX,Contronic P, Contronic E, Operate IT
- Foxboro: I/A Series
- HIMA HiMax
- Invensys Triconex
Best Practice / Customer Projects
iMes Solutions' Alarm Management Solution is applied at one of the World's most important Producers of chemical Products
Plant Historian AM - Alarm Management - has been in use at the world's largest chemical company since 2020. At the site in southwest Germany, a total of 11 plants with different PCS and PLC systems were connected in just a few weeks.
Plant Historian AM represents a robust, intuitive and scalable alarm management solution that meets all requirements. The different control systems and controllers are displayed centrally. Additional DCS/PLC systems could be connected without any downtimes.
By reducing the number of alarms, it was possible to reduce downtimes , optimize plant utilization and increase process quality after only a few months.
To companies in the process industry, Plant Historian AM - Alarm Management - offers an efficient, robust and transparent solution to increase plant safety and security and reduce the number of alarms. Our alarm management solution is suitable for both small and large companies. Company-wide solutions with more than 90 plants, 300 servers and over 300,000 measuring points have already been successfully implemented.
Leading petrochemical Company relies on Plant Historian Alarm Management & Alarm Rationalization
Since 2016, Plant Historian AM - Alarm Management has been used in one of the largest oil refineries in the German-speaking region - since 2018 in combination with the Plant Historian AR module Alarm Rationalization. Approximately 2000 employees work at the site.
A wide variety of process control systems and controllers from different manufacturers are in use - ABB Symphony and Foxboro I/A, safety-related controllers such as HIMA HiMax and Invensys Triconex. For the more than 120,000 daily messages in 3 facilities, there was no operational message monitoring or the possibility to intuitively evaluate alarm frequencies or alarm duration.
Plant Historian AM/AR provides the customer with sustainable alarm management while meeting all requirements. The various control systems and controllers are integrated and displayed centrally. In addition to central message monitoring and the graphical evaluation of alarm frequencies, the customer also uses the advantages of automated KPI reporting according to ISA 18.2.
The application is intuitive and user-friendly.
Systematic alarm management with Plant Historian AM/AR - Alarm Management/Rationalization - is equally suitable for small and large companies. Company-wide solutions with more than 300 servers can be realised without any difficulties.
Plant Historian Alarm Management at a Swiss Chemicals Company
Since 2007, Plant Historian AM - Alarm Management - has been applied at the south-east Bavarian dependency of one of the largest producers of speciality chemicals.
A wide variety of process control systems and controllers from different manufacturers such as Siemens PCS7, ABB 800xA, ABB Freelance, ABB Symphony as well as Hima HIMAX and Honeywell FSC are in use. A total of 6 control systems and controllers from different manufacturers were connected with 16 DCS connectors.
Plant Historian AM offers the customer the possibility of long-term archiving of alarms & events. The various control systems and controllers are integrated and displayed centrally. The application is intuitive and user-friendly. A key point is also the scalability without interfering with the running operation. The latter proved to be an invaluable advantage in the gradual expansion to a company-wide, central alarm management system.
Plant Historian AM - Alarm Management - provides an efficient, robust and transparent solution to increase plant safety and reduce the number of alarms in companies in the chemical industry.Plant Historian AM - Alarm Management - provides an efficient, robust and transparent solution to increase plant safety and reduce the number of alarms in companies in the chemical industry.
Shift Book - Integration for SIMATIC PCS7 in one of the largest Sewage Treatment Plants in the German-speaking Region
For operators, the flexible Shift Book solution of iMes Solutions provides quick and easy information on any kind of incident in the plant - thus being able to delegate tasks and track events.
Plant operators, shift supervisors and plant managers can quickly obtain an up-to-date overview of the status of the entire plant both on the SIMATIC PCS 7 OS Client and on the computer in the office.
There are different ways to access the shift book:
- via a button in the WinCC button bar
- via the faceplate of the unit
- via the shift book symbol in the WinCC
The iMes shift book is designed to optimise and simplify processes and also takes into account regulatory requirements. Digital checklists, error message recording as well as maintenance tasks etc. are covered. Improved communication, fewer misunderstandings and less paper consumption are further advantages.
iMes Solutions' Shift Book solution is also available as a PCS7 Add-On in the Siemens Industry Mall.
Plant Historian AR
Alarm Rationalization for increased Plant Security
The prioritization of alarms is usually based on the effects of ignoring alarms (damage to people, the environment and machinery) and the operator's remaining reaction time in an alarm situation.
Incorrect alarm prioritization can have the following negative consequences:
- Alarms with too low a priority can be a risk for plant safety
- Too many alarms with a high priority lead to desensitization of the operators
An intuitive decision tree is used to determine the actual alarm priority. If the prioritization of an alarm changes, the MOC process will be automatically started. After completion of the MOC (confirmation of the change by the dual control principle), the change can be implemented in the control technology. Finally, Plant Historian AR will check the correct execution of the priority change.
Combined with Plant Historian AM (Alarm Management), Plant Historian AR (Alarm Rationalization) represents an essential component of systematic alarm management..
- Increased plant safety and security as a result of correct alarm prioritization
- Showing discrepancies between the determined alarm priorities and the actual process control system alarm priorities
- Support for alarm reduction
- Automatic start of the MOC process (Management of Change)
- Alarm priority determination with the help of an intuitive decision tree
- Automatic comparison of the alarm priorities determined by the alarm rationalization with the actual alarm priorities of the process control system
- Initial situation for alarm rationalisation directly from the process control system
- Documentation of the MOC Process
